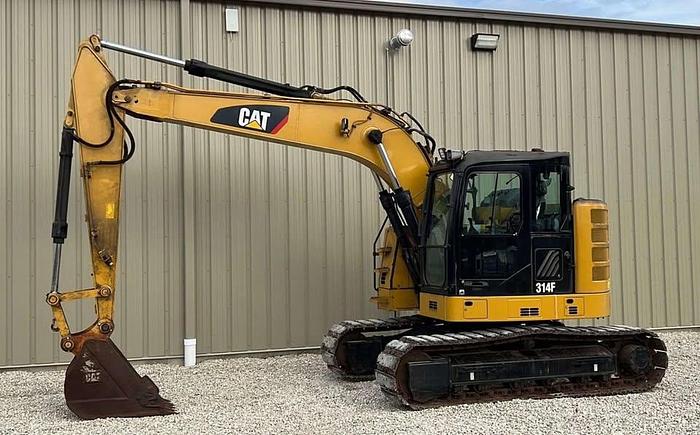

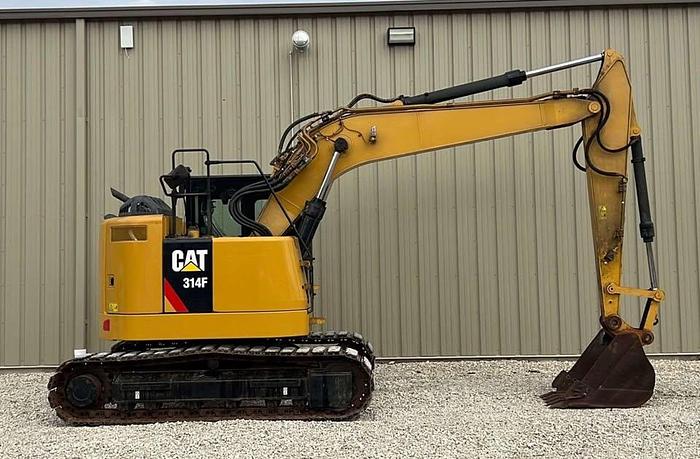

2019 Caterpillar 314F CR Excavator

The 2019 Caterpillar 314F CR Excavator is in perfect condition inside and out. It runs and drives flawlessly, has never had any mechanical issues, and shows no scratches or dents. Super clean and well-maintained, this excavator is ready to deliver reliable performance on any job site.

Engine

• Net Power: 116 HP (86 kW)
• Engine Model: Cat C4.4 ACERT

Weights

• Operating Weight: 32,000 – 33,000 lbs (14,515 – 14,970 kg)

Dimensions

• Maximum Dig Depth: 22 ft 7 in (6,880 mm)
• Maximum Reach at Ground Level: 32 ft 9 in (9,980 mm)
• Maximum Dump Height: 22 ft 3 in (6,780 mm)
• Tail Swing: 5 ft 11 in (1,800 mm)

Hydraulic System

• Auxiliary Hydraulics: Standard
• Hydraulic System Capacity: 33 gal (125 L)
• Hydraulic Flow: 48 gpm (182 L/min)
• Operating Pressure: 5,076 psi (35,000 kPa)

Travel & Performance

• Travel Speed: 2.8 mph (low) / 3.4 mph (high)
• Blade: Standard dozer blade
• Bucket Options: 36 – 60 in hydraulic quick attach

Service Refill Capacities

• Fuel Tank: 66 gal (250 L)
• Cooling System: 7.9 gal (30 L)
• Engine Oil: 3.7 gal (14 L)
• Hydraulic Tank: 24 gal (90 L)

Hours:
