2018 CAT D5K2 LGP Dozer

2018 CAT D5K2 LGP Track-Type Dozer

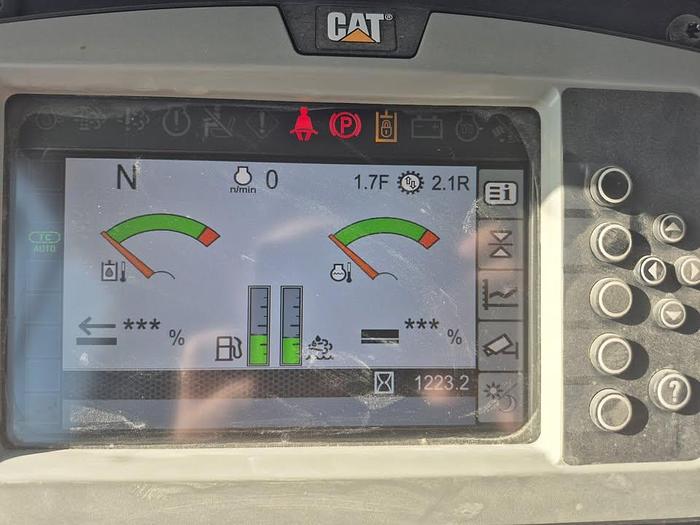

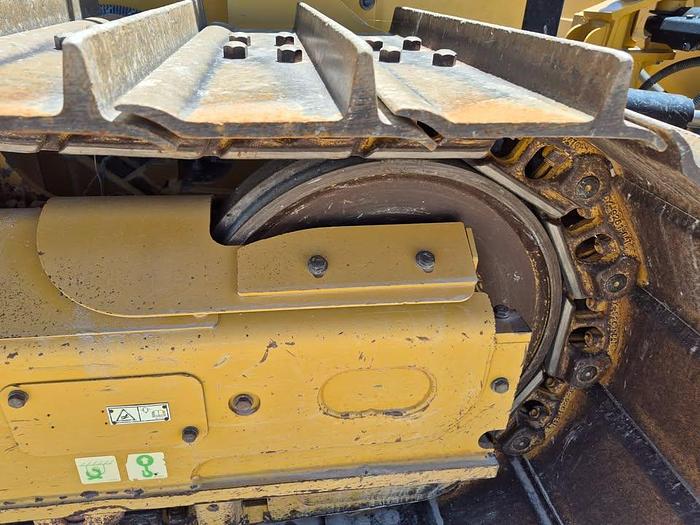

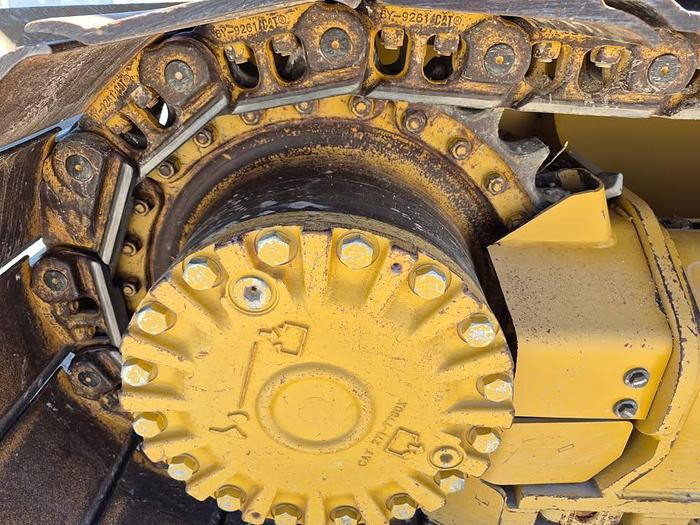

Low-hour 2018 CAT D5K2 LGP with only 1,223 hours. Recently serviced with new filters and fluids, and the undercarriage is in excellent condition (see photos). Comes with brand new cutting edges for the blade (pictured in box). No additional accessories.

Engine

• Model: CAT C4.4 ACERT
• Net Power: 104 hp (77.6 kW) @ 2,200 rpm
• Displacement: 4.4 L (269 in³)
• Emissions: Tier 3 or Tier 4 (depending on configuration)

Operating Weight

• Standard LGP: 20,992 lb (9,522 kg)
• With 30 in shoes: 21,442 lb (9,726 kg)

Dimensions

• Height to Top of Cab: 109 in (2.77 m)
• Length with Blade: 169 in (4.31 m)
• Length without Blade: 129 in (3.89 m)
• Width over Tracks: 95 in (2.41 m)

Transmission & Drive

• Type: Dual-path, closed-loop hydrostatic drive
• Maximum Speeds:
• Forward: 5.6 mph (9 km/h)
• Reverse: 6.2 mph (10 km/h)

Undercarriage

• Rollers per Side: 7
• Shoe Options: SALT – 26 in (660 mm); SystemOne – 30 in (762 mm)
• Track Gauge (LGP): 69 in (1.75 m); with 30 in shoes: 73.2 in (1.86 m)
• Ground Contact Area (LGP): 4,726–5,514 in²
• Ground Pressure (LGP): 4.5 psi; with 30 in shoes: ~3.9 psi

Service Refill Capacities

• Fuel Tank: 51.5 gal (195 L)
• Engine Crankcase: 2.9 gal (11 L)
• Final Drives (each): 2.6 gal (10 L)
• Cooling System: 5.9 gal (22.4 L)
• Transmission / Hydraulic Tank: 15.7 gal (59.5 L)
• DEF Tank (if applicable): 5 gal (19 L)

Hydraulic System

• Pump Output: 17.7–19.4 gal/min (68–73.5 L/min)
• Relief Valve Pressure: 2,988 psi (20,600 kPa)
