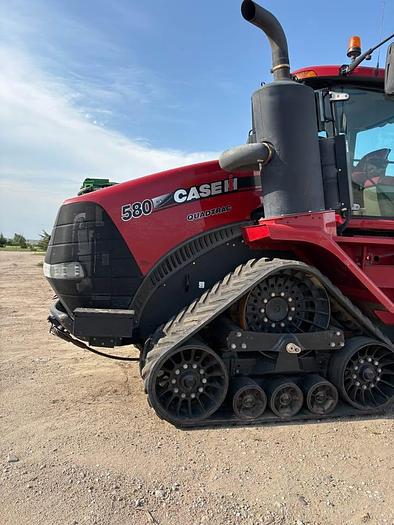

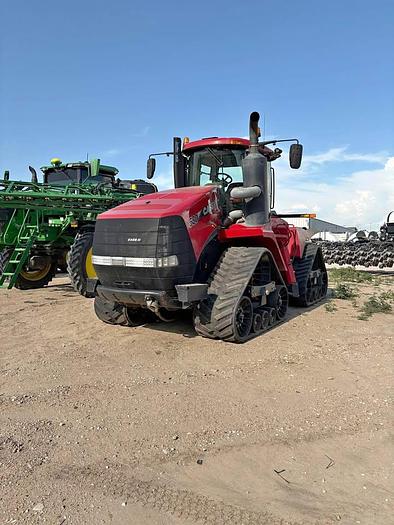

2018 Case IH 580 Quadtrac

2018 Case IH 580 Quadtrac

This powerful 580 Quadtrac is built to handle the toughest jobs. It comes equipped with 4 hydraulic remotes, a K-Tec scraper hitch, front tow cable, and a hitch pin adapter for added flexibility. Inside, you’ll find a clean cab with leather seating and upgraded LED lighting for superior visibility. This unit has been deleted for increased performance and efficiency. A serious machine for serious work.

Engine

• Make: FPT (Fiat Powertrain Technologies)
• Model: Cursor 13
• Type: 6-cylinder, turbocharged diesel with intercooler
• Emissions: Tier 4 Final (SCR + DEF system — note: deleted in this unit)
• Displacement: 12.9 L (787 cu in)
• Rated Engine Power: 580 hp
• Peak Power: 638 hp
• Fuel Tank Capacity: 400 gal (1,514 L)
• DEF Tank Capacity: 36 gal (136 L)

Transmission

• Type: 16-speed full powershift
• Forward/Reverse Speeds: 16F / 2R
• Max Forward Speed: ~25 mph (40 km/h)

Hydraulics

• Hydraulic System Type: Closed center, pressure flow compensated (PFC)
• Standard Pump Flow: 42 gpm (160 L/min)
• Optional High-Flow: Up to 113 gpm (428 L/min) with twin flow pumps
• Remotes: 4 (expandable up to 8 total)
• Rear Hitch: Category 4N/4, drawbar or scraper-style hitch options

Undercarriage

• Configuration: Quadtrac (four independent tracks)
• Track Width Options: 30 in or 36 in
• Track Length on Ground: Approx. 88 in (2,235 mm)
• Ground Contact Area: ~3,200 in² per track

Dimensions & Weight

• Overall Length: 289 in (7.34 m)
• Width (varies with track): 120–144 in (3.05–3.66 m)
• Height to Top of Cab: 148 in (3.76 m)
• Base Weight: Approx. 56,000 lb (25,401 kg)

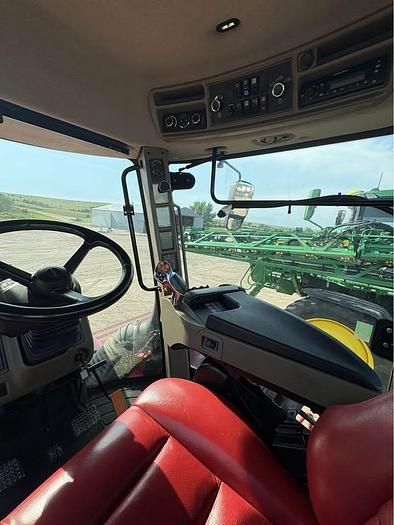

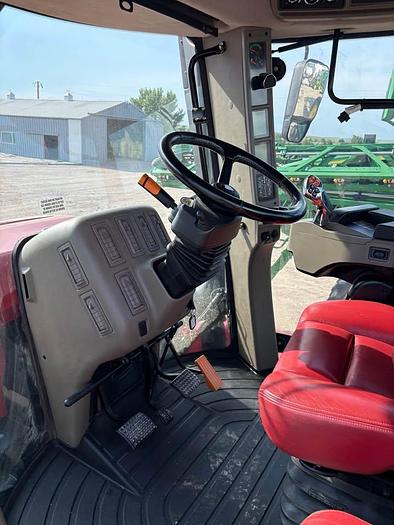

Cab Features

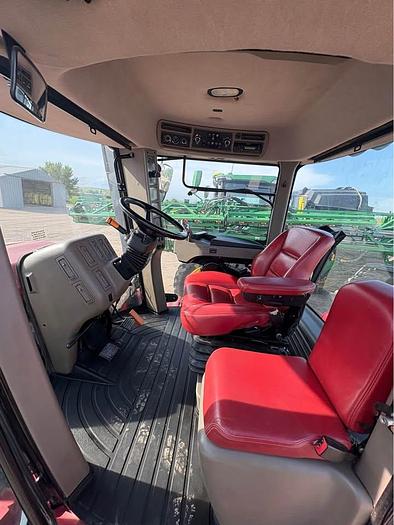

• Deluxe leather seat
• AFS Pro 700 display (optional)
• LED lighting package
• Automatic climate control
• Optional premium audio system
• Quiet, pressurized cab with panoramic visibility

Additional Features on This Unit

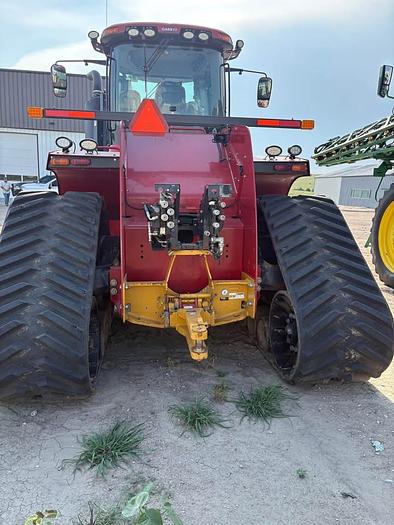

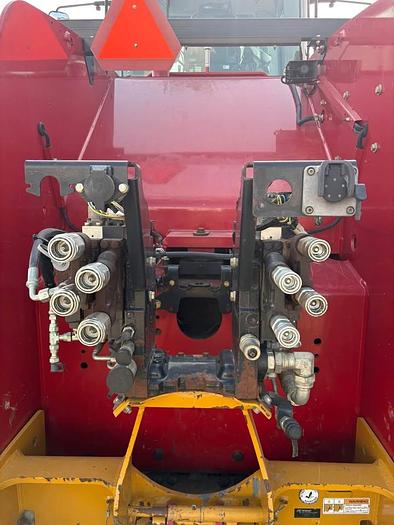

• 4 rear hydraulic remotes

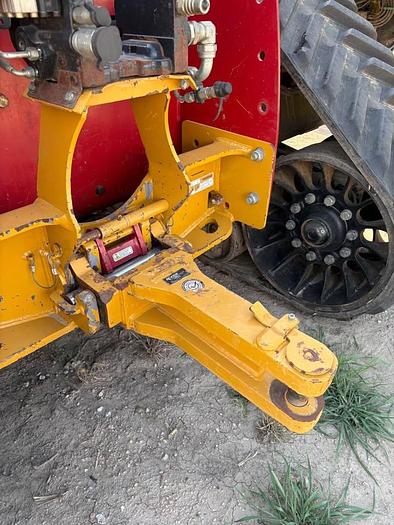

• K-Tec scraper hitch
• Front tow cable
• Hitch pin adapter included
• LED lighting
• Deleted emissions system
• Leather seat package
