2017 Vermeer 20X22 S3
Drills
USED - GOOD | 3,470 Hours | Stock BAM-11524
Unit description

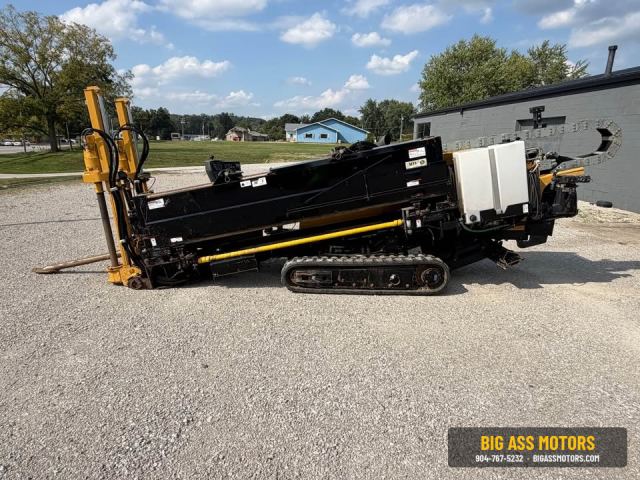

The 2017 Vermeer D20x22 S3 Navigator is a highly efficient horizontal directional drill (HDD) designed explicitly for tight spaces, urban utilities, and fiber-to-the-home installations. Earning its "S3" badge for speed, simplicity, and sound, this 2017 model pairs a narrow footprint with competitive power to boost daily linear footage on crowded jobsites.
Specifications
| Engine | Deutz TD2.9 turbocharged, liquid-cooled diesel |
|---|---|
| Emissions Rating | Tier 4 Final / Stage IIIB compliant (Requires No DEF) |
| Gross Horsepower | 74 hp (55.2 kW) at 2,600 max RPM |
| Displacement | 177 cu in (2.9 L) |
| Thrust / Pullback Force | 19,500 lbs (86.7 kN) |
| Maximum Spindle Torque | 2,250 ft-lbs (3,050.6 Nm) in low range |
| Maximum Spindle Speed | 257 RPM |
| Maximum Carriage Speed | 160 ft/min (48.8 m/min) up to 167 ft/min |
| Maximum Ground Drive Speed | 3.3 mph (5.3 km/h) |
| Drill Rack Angle | 12° to 17° |
| Minimum Bore Diameter | 3.0 inches (7.6 cm) |
| Mud Pump Max Flow | 25 gpm (94.6 L/min) |
| Mud Pump Max Pressure | 1,000 psi (69 bar) |

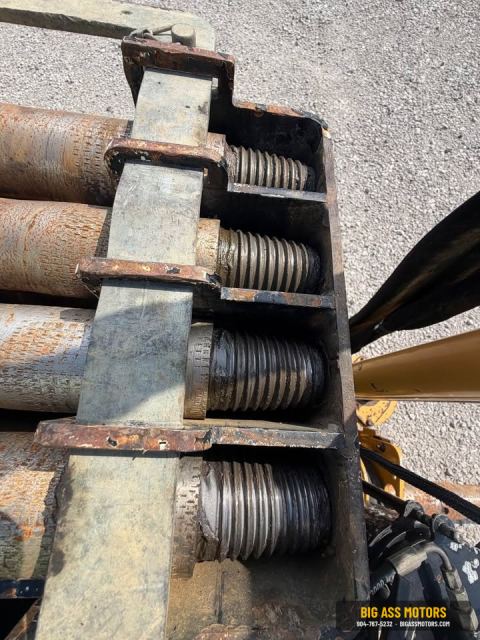

| Drill Rod Type | Firestick® drill rod |
| Length per Rod | 10 ft (3.0 m) |
| Rod Diameter Options | 1.9 inches (4.8 cm) or 2.06 inches (5.2 cm) |
| Onboard Pipe Capacity | 400 ft (121.9 m) across a 40-piece basket |
| Fuel Tank | 25 gal (94.6 L) |
| Hydraulic Tank | 30 gal (113.6 L) |
| Total Hydraulic System | 40 gal (151.4 L) |
| Transport Length | 204 inches (17 ft / 5.18 m) |
| Transport Width | 48 inches (4 ft / 1.22 m) |
| Transport Height | 74 to 78 inches (1.88 - 1.98 m) depending on track setup |
| Operating Weight | Approximately 10,840 lbs to 11,160 lbs base weight (up to 12,808 lbs fully loaded with pipe basket) |
Specifications are manufacturer / typical values for this model and are provided for reference; verify on inspection.
