2016 Vermeer 20X22S3 Package

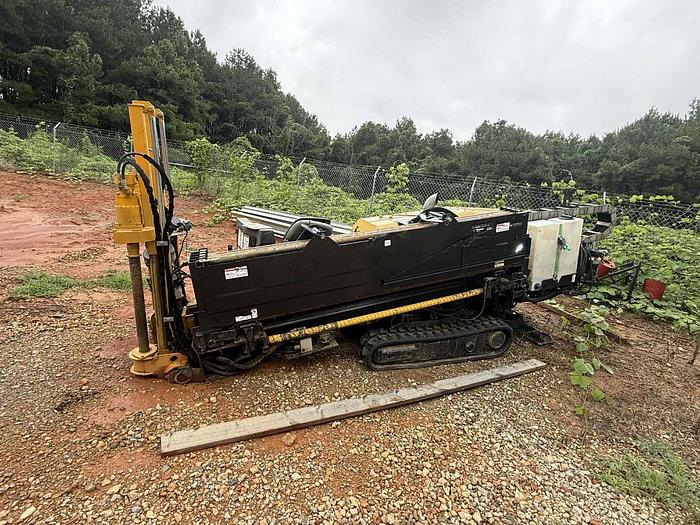

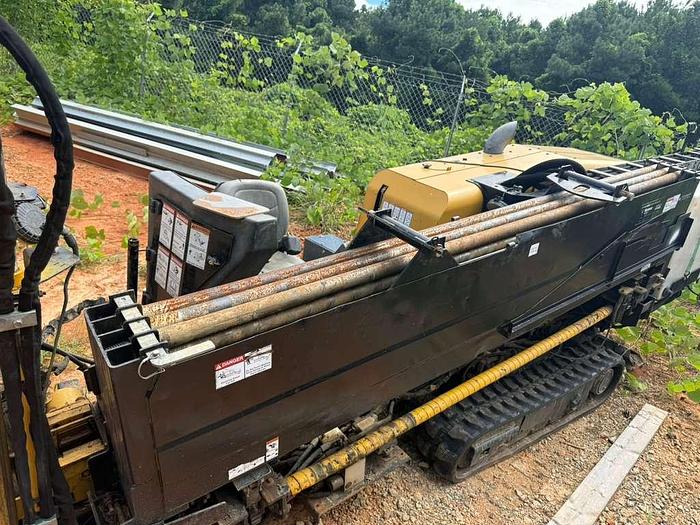

2016 Vermeer D20X22S3 Package: This 2016 Vermeer D20x22S3 package is a reliable solution for utility installation with 3000 hours of use. The compact, powerful directional drill features a Tier 4 Deutz engine, providing 19,500 lbs of thrust and pullback, and a class-leading 167 ft/min carriage speed.

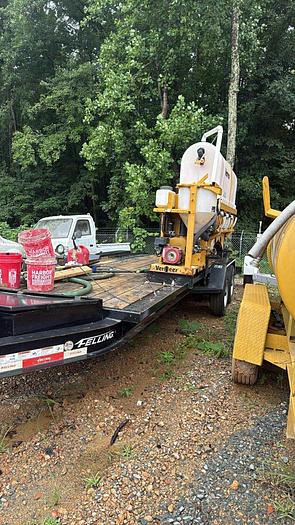

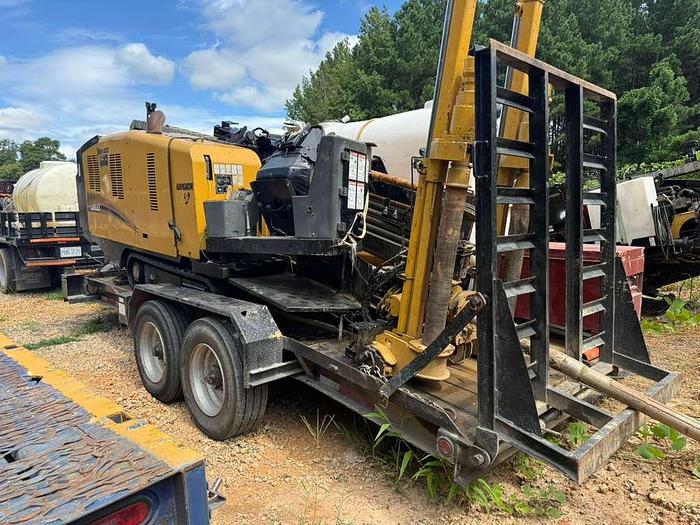

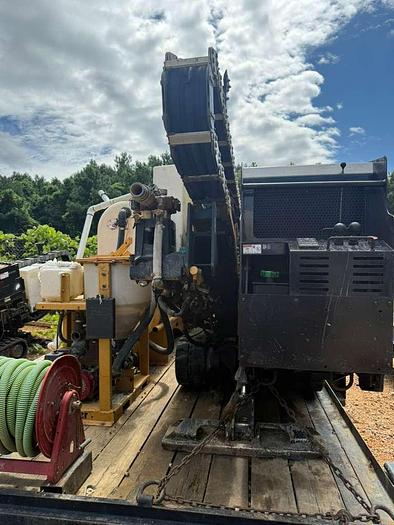

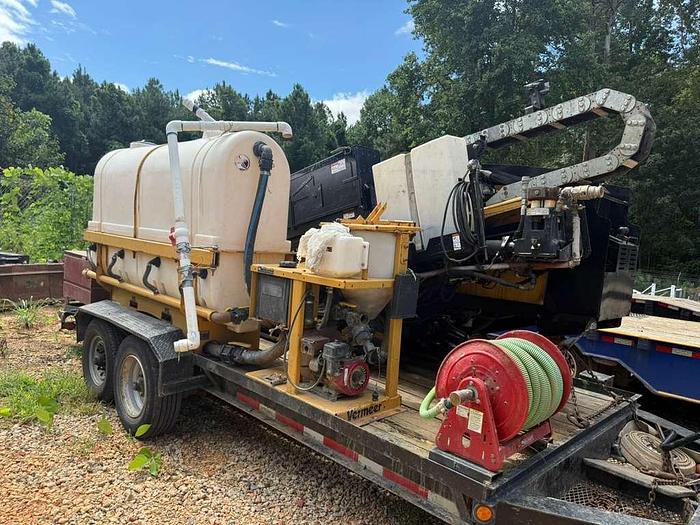

The package includes a custom trailer, mud mixing system, and a Mag8 locator, providing everything you need to start working efficiently.

Manufacturer's Specs

• Engine: Deutz TD2.9

• Gross Horsepower: 74 hp (55.2 kW)

• Max Engine RPM: 2600 rpm

• Fuel Type: Low sulfur diesel

Operational

• Thrust/Pullback: 19,500 lbs (86.7 kN)

• Maximum Spindle Torque (Low): 2250 ft-lb (3050.6 Nm)

• Maximum Spindle Speed: 257 rpm

• Maximum Carriage Speed: 167 ft/min (50.9 m/min)

• Minimum Bore Diameter: 3 in (7.6 cm)

• Drill Rack Angle: 17°

• Automated Rod Loader: Semi-automated

Drilling Fluid System

• Maximum Flow: 25 gpm (94.6 L/min)

• Maximum Pressure: 1000 psi (68.9 bar)

Dimensions & Weights

• Length (Min Transport): 204 in (518.2 cm)

• Width (Min Transport): 47.5 in (120.7 cm)

• Height (Min Transport): 74 in (188 cm)

• Weight: 10,850 lbs (4921.5 kg)

Additional Features

• Standard hydraulic vice breakout system

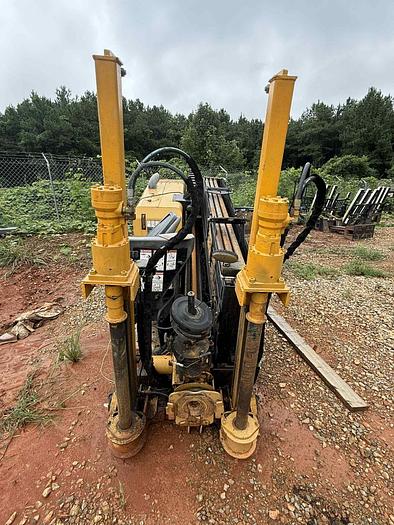

• Standard flow indicator, stakedown system, strike alert, and remote lockout

• Optional drilling lights
