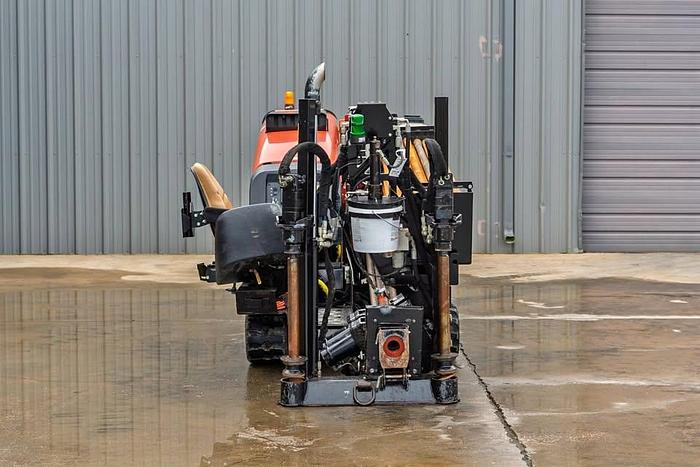

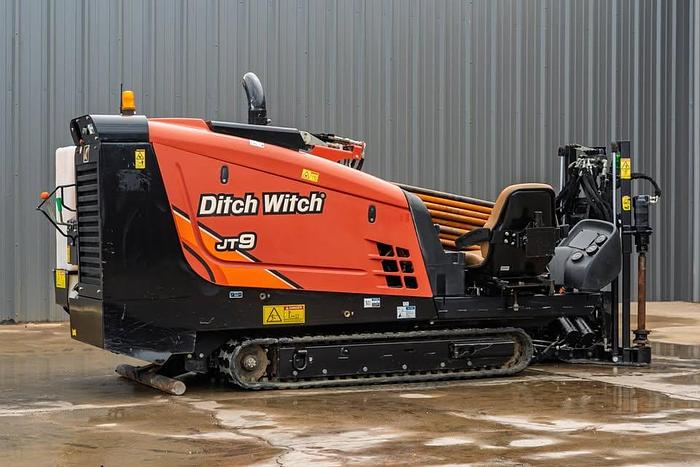

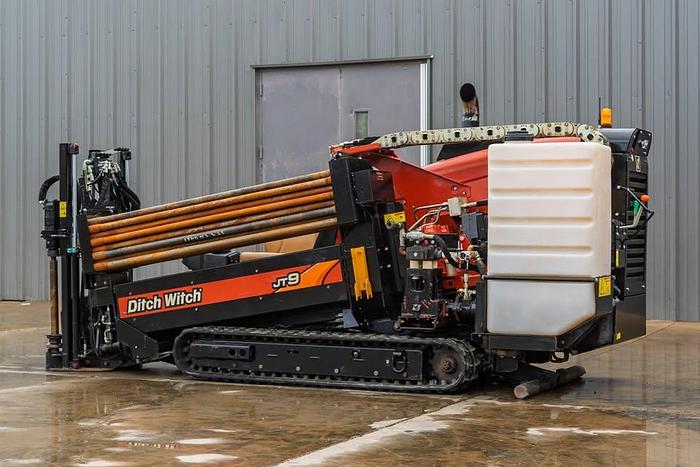

2016 Ditch Witch JT9

This 2016 Ditch Witch JT9 Horizontal Directional Drill is a fantastic opportunity to acquire a reliable, compact, and powerful machine with low usage hours. At just 2,711 hours, this rig has a long life ahead and is confirmed to be in great condition. The JT9 is perfect for residential and congested urban utility installations, thanks to its compact size and rubber tracks that minimize turf disturbance. Best of all, this is a complete drilling package, ready to work immediately! It comes fully equipped with its onboard 50-piece pipe rack holding 50 pieces of drill pipe for a total of 300 feet of drill stem. This machine offers the perfect blend of maneuverability and performance for its class.

Manufacturer Specs

• Engine: Deutz® TD2.9 Diesel

• Gross Horsepower: 66 hp (49 kW)

• Thrust Force: 9,000 lbs (40 kN)

• Pullback Force: 9,000 lbs (40 kN)

• Max Spindle Torque: 1,100 ft-lbs (1490 N·m)

• Max Spindle Speed: 186 rpm

• Drilling Fluid Flow (Max): 16 gpm (60.57 L/min)

• Drill Pipe Capacity: 50 pieces (300 ft total)

• Key Features: Rubber Tracks, Rack-and-Pinion Thrust Drive, Integrated Pipe Rack
