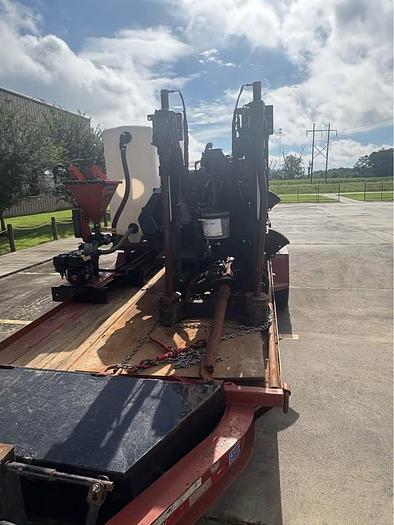

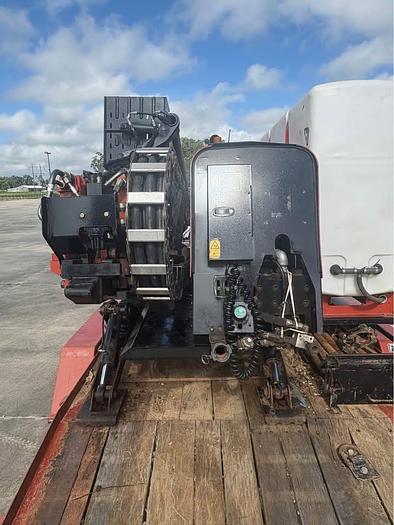

2015 Ditch Witch JT20 Package

This 2015 Ditch Witch JT20 is a complete, work-ready package designed for serious contractors. With a solid 4008 hours on the machine, it's proven its reliability and is ready for the next job. This rig is powered by a dependable Deutz diesel engine, providing the muscle you need for a variety of underground utility installations.

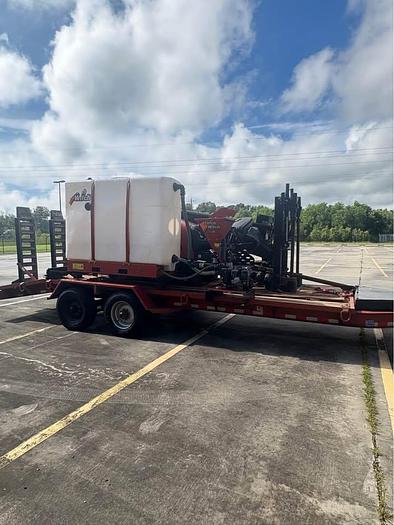

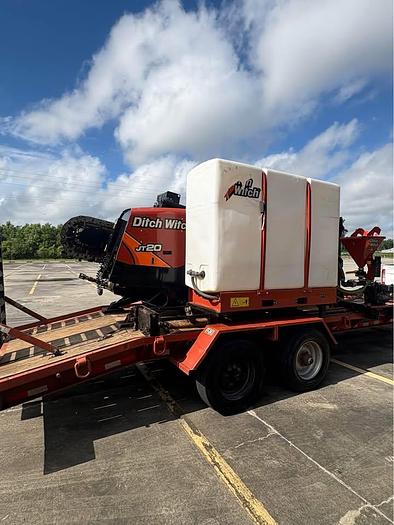

The package is truly ready to go, including a newer 2022 Ditch Witch FM5x mixing system, ensuring your mud is consistently ready for the job. Transport is a breeze with the included 2018 Felling 24-foot directional drill trailer. The rig comes with 400 feet of drill pipe, so you can head straight to the job site. This entire package offers a fantastic blend of power, productivity, and convenience.

Manufacture Specs

2015 Ditch Witch JT20 Directional Drill

Engine: Deutz TD2.9L4 diesel

Gross Horsepower: 74 hp (55 kW)

Pullback Force: 20,000 lbs (89 kN)

Thrust Force: 17,000 lbs (75.6 kN)

Spindle Torque (Max): 2,200 ft-lb (2980 Nm)

Spindle Speed (Max): 210 rpm

Drilling Fluid Flow: 35 gpm (132 L/min)

Weight (w/pipe): 11,890 lbs (5,390 kg)

Dimensions (L x W x H): 207 x 51.5 x 90 in (5.26 x 1.31 x 2.29 m)

Included Package Components

Ditch Witch FM5x Mixing System:

• Engine: Honda gasoline engine
• Power: 4.8 hp (3.6 kW)

Pump Discharge Rate: 160 gpm (606 L/min)

Fluid Pressure (Max): 40 psi (2.8 bar)

Trailer: 2018 Felling 24-foot directional drill trailer

Drill Pipe: 400 feet included
