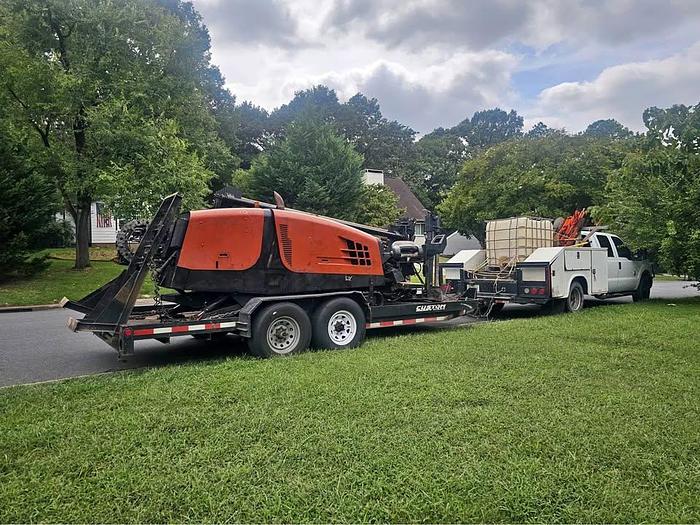

2010 Ditch Witch JT20 Package

Don't wait—this complete directional drilling package is job-site ready! This 2010 Ditch Witch JT2020 Mach 1, with only 3,500 hours, is the perfect machine for contractors needing powerful performance without a large footprint. Known for its rugged reliability and high power-to-size ratio, the JT2020 packs serious pulling power into a maneuverable unit.

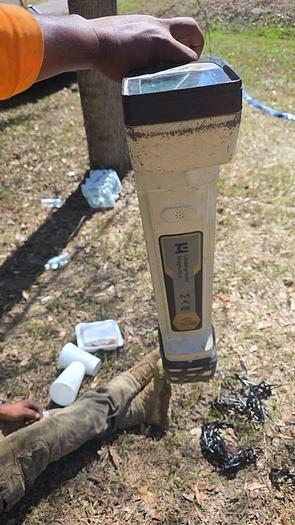

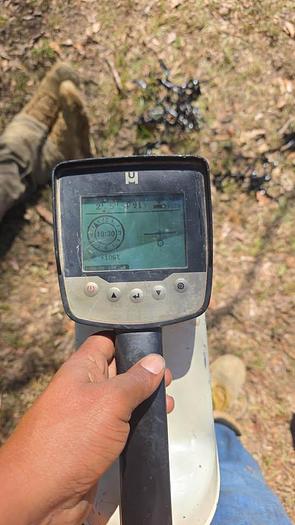

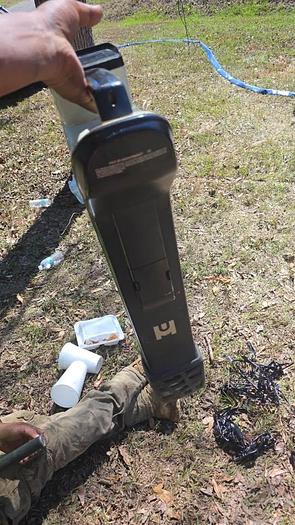

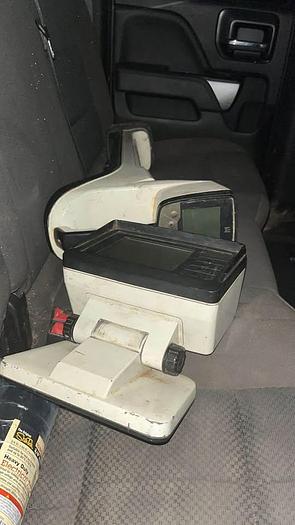

This is a full operational package that includes all the essential support equipment to start boring immediately: a complete Underground Magnetics locating system (including the beacon), a dedicated housing trailer, and an essential fluid tank. Skip the hassle of piecing together your spread—hook up and head straight to your next utility installation.

Key Features of the Machine:

High Power: 20,000 lbs. of Pullback Force

Compact Size: Excellent for urban and residential work

Complete Package: Everything you need, from locating to mud

Manufacturer Specs:

Engine: Cummins B3.3 Diesel

Engine Power (Gross): 83 HP

Thrust Force: 17,000 lb (75.6 kN)

Pullback Force: 20,000 lb (89 kN)

Maximum Spindle Torque: 2,200 ft-lb (2983 N•m)

Maximum Spindle Speed: 150 RPM

Maximum Fluid Flow: 30 GPM (114 L/min)

Operating Weight: Approximately 10,800 lb (4899 kg)

Overall Length: 203 inches (5.16 m)

Overall Width: 51.5 inches (1.31 m)

Rod Carrying Capacity: 400 feet
