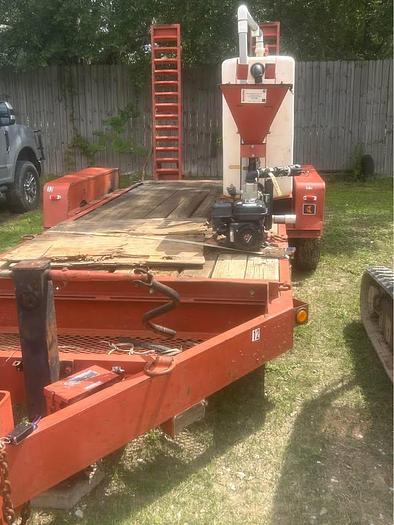

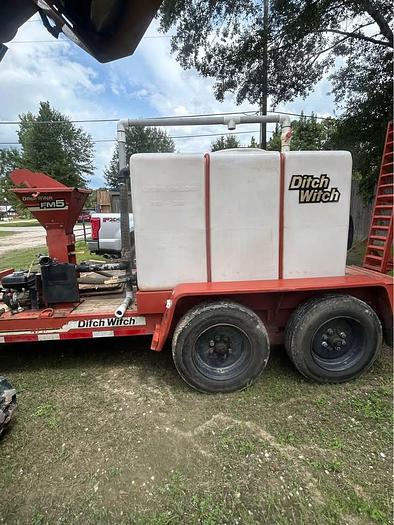

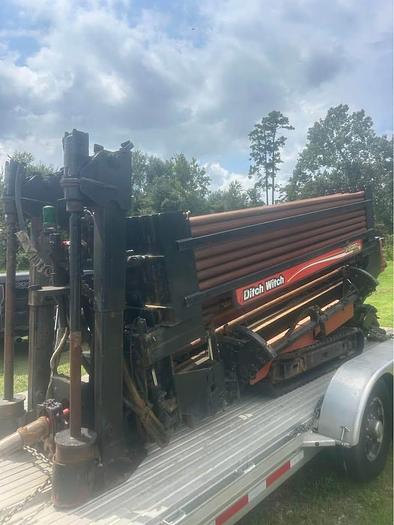

2007 Ditch Witch JT20 Package

This 2007 Ditch Witch JT2020 is a powerful and reliable directional drilling rig in great shape, with only 1300 hours on the meter. Its 83-hp Cummins engine provides the power to handle a wide range of jobs, and with 20,000 lbs of pulling power, it's a true workhorse. This package comes fully equipped and ready to get on the job site today. It includes a full rack of great rods, and a trailer with clean title on hand. The entire unit has just been serviced and is ready to work.

Manufacturer Specs

2007 Ditch Witch JT2020 Mach 1 Directional Drill

Engine: Cummins B3.3 Diesel

Gross Horsepower: 83 hp (62 kW)

Thrust Force: 17,000 lbs (75.6 kN)

Pullback Force: 20,000 lbs (89 kN)

Maximum Spindle Torque: 2,200 ft-lb (2983 Nm)

Maximum Spindle Speed: 150 rpm

Drilling Fluid Flow: 30 gpm (114 L/min)

Operating Weight: 10,800 lbs (4899 kg)

Rod Carrying Capacity: 400 ft

Dimensions (L x W x H): 203 x 50.5 x 78 in (5.16 x 1.28 x 1.98 m)

Included Package Components:

Drill Rods: 400 feet

Trailer: Included with title
