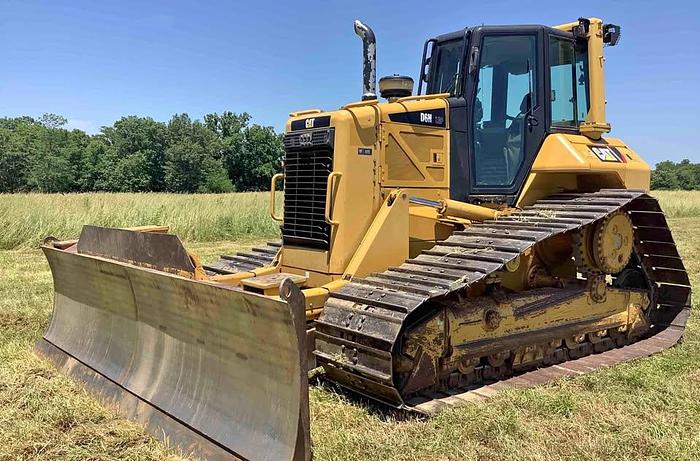

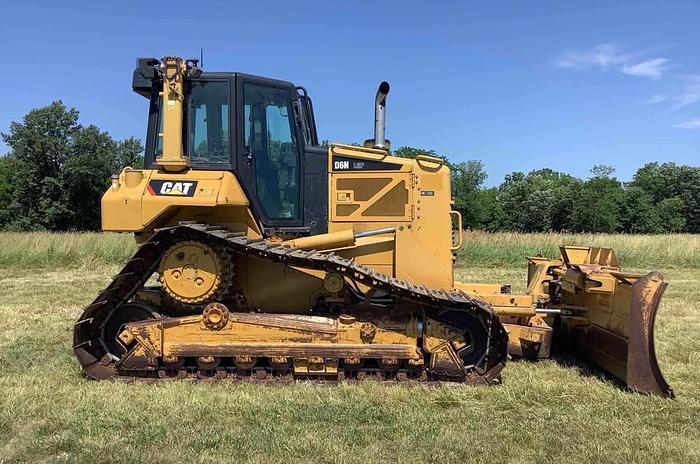

2007 Cat D6N LGP Dozer

2007 Cat D6N LGP dozer powered by a robust 6.6L ACERT diesel engine and smooth 3-speed powershift transmission. Equipped with a 13-foot 6-way blade for versatile grading and pushing tasks. The cab offers heat, air conditioning, and a radio for operator comfort during long shifts. Wired for GPS grade control and fitted with 33-inch single bar grouser pads, this machine delivers strong performance in tough conditions.

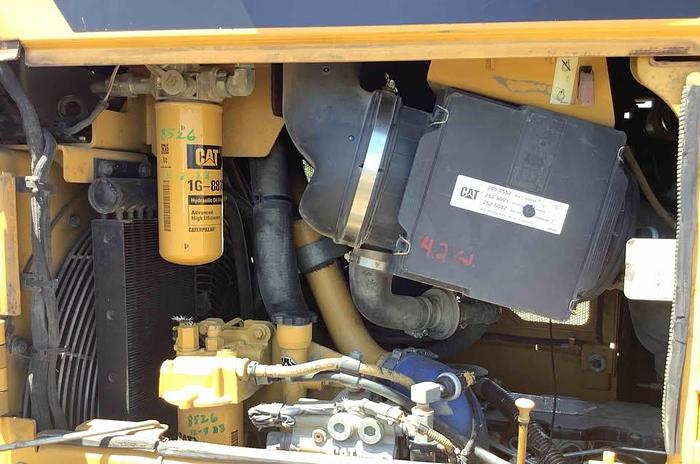

Engine

• Model: Caterpillar 3306 ATAAC, 6-cylinder, turbocharged diesel engine
• Net Power: Approximately 140 horsepower (104 kilowatts)
• Displacement: 6.6 liters

Operating Weight

• Approximately 20,900 kilograms (46,100 pounds)

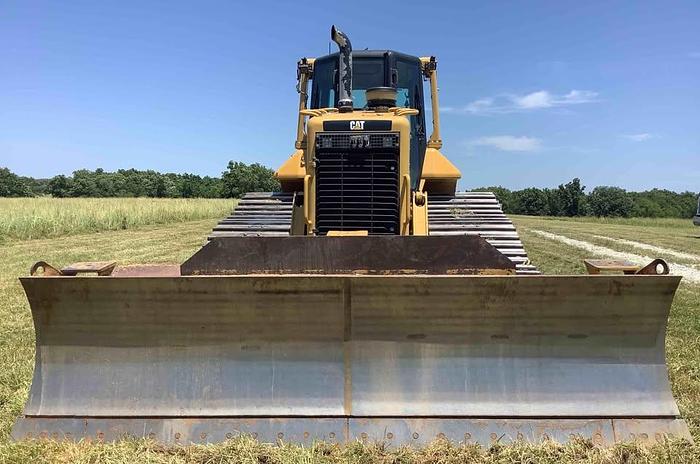

Blade

• Type: 6-way blade
• Blade Width: Approximately 13 feet (3.96 meters)
• Blade Capacity: Varies with blade design, generally around 3.5 to 4.5 cubic yards

Transmission

• Type: 3-speed powershift transmission

Undercarriage

• Track Gauge: Approximately 1.98 meters (78 inches)
• Track Shoe Width: 33 inches (838 millimeters) single bar grouser pads

Performance

• Maximum Travel Speed: Approximately 11 kilometers per hour (7 miles per hour)

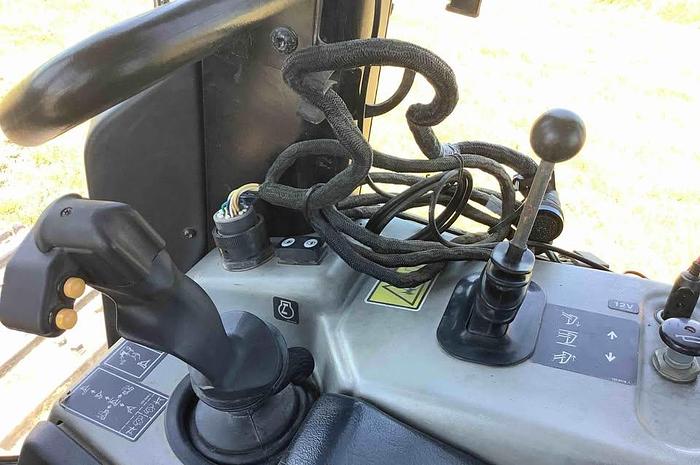

Cab & Operator Comfort

• Equipped with heating and air conditioning
• Includes radio
• Wired for GPS grade control systems

Dimensions

• Overall Length (with blade): Approximately 6.2 meters (20.3 feet)
• Width (over tracks): Approximately 2.5 meters (8.2 feet)
• Height to Top of Cab: Approximately 3.1 meters (10.2 feet)
