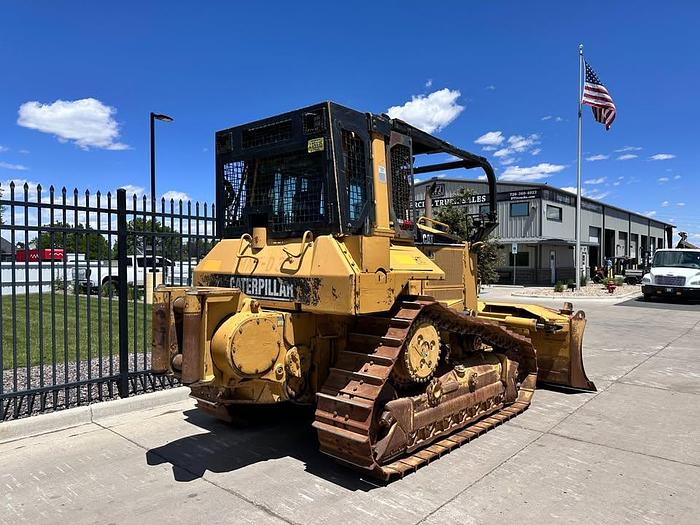

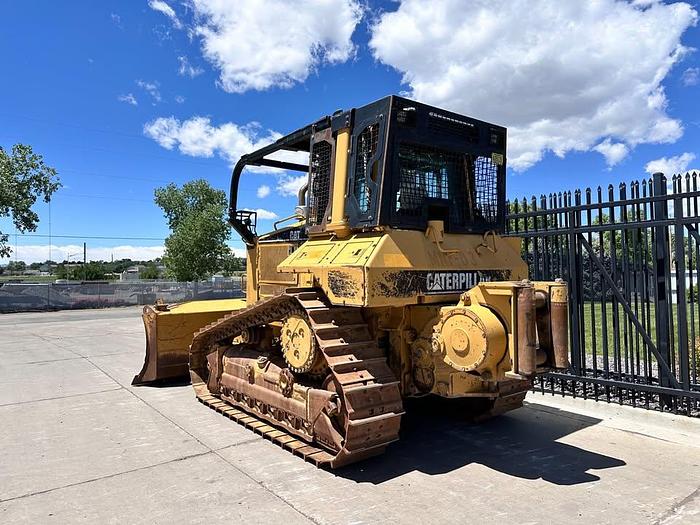

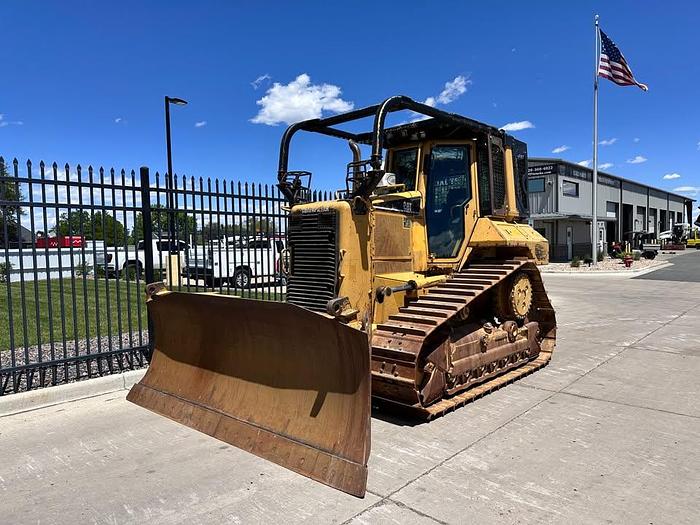

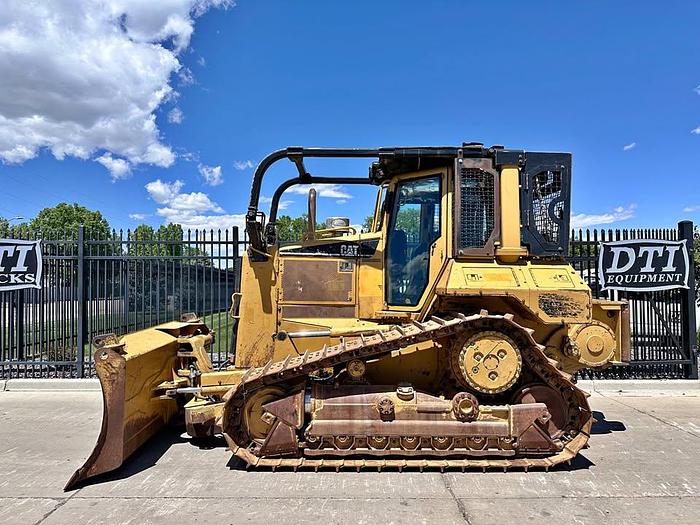

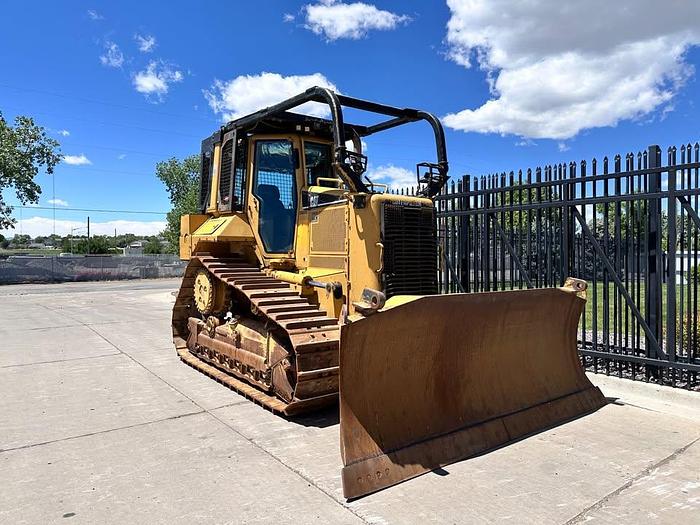

2004 Caterpillar D6N XL

2004 Caterpillar D6N XL Bulldozer powered by a reliable pre-emissions Cat 3126T diesel engine producing 220 HP. Features a smooth 3-speed powershift transmission, 6-way blade with 4.2 yd³ capacity, and a heavy-duty winch. This machine includes sweeps, rear and side screens for added protection, and weighs in at 36,610 lbs.

A solid, dependable dozer for demanding job sites.

Engine:

• Model: Cat 3126T Turbocharged Diesel
• Net Horsepower: 220 HP (164 kW)
• Emissions: Pre-Emissions / No DEF
• Displacement: 7.2 L (441 in³)
• Fuel Capacity: Approx. 285 liters (75 gallons)

Transmission:

• Type: Powershift
• Gears: 3 Forward / 3 Reverse
• Travel Speed (Max):
• Forward: Approx. 6.8 km/h (4.2 mph)
• Reverse: Approx. 8.6 km/h (5.3 mph)

Operating Specs:

• Operating Weight: 36,610 lbs (16,603 kg)
• Ground Clearance: Approx. 14.5 inches
• Drawbar Pull: Approx. 70,000 lbf

Undercarriage:

• Configuration: XL (Extra Long) for balance of flotation and traction
• Track Gauge: Approx. 6 ft 6 in (1981 mm)
• Shoe Width: Varies depending on setup
• Track on Ground: Approx. 101 inches

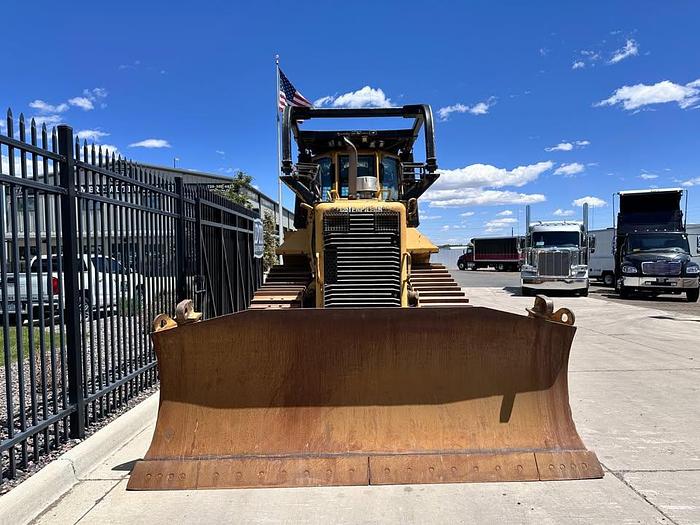

Blade & Attachments:

• Blade Type: 6-Way (VPAT)
• Blade Capacity: 4.2 yd³ (3.2 m³)
• Width of Blade: Approx. 10 ft 8 in

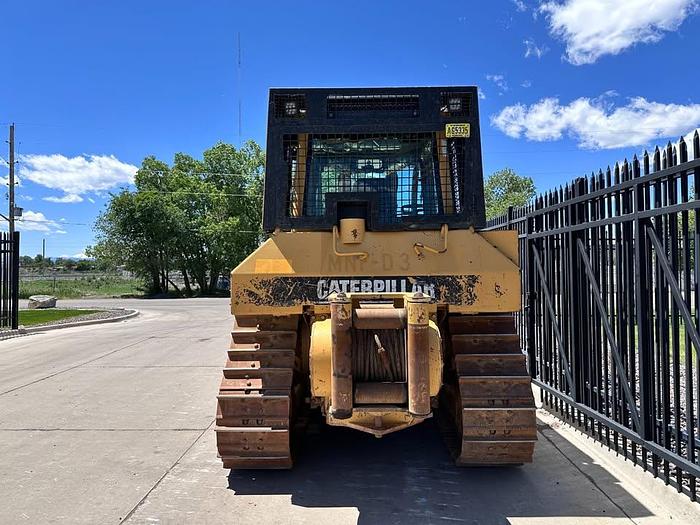

• Winch: Included (Heavy Duty, Rear Mounted)

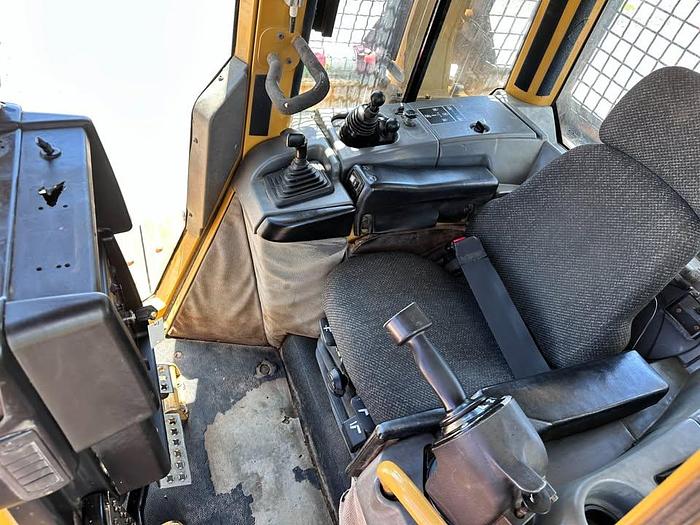

Cab & Features:

• Operator Protection: Sweeps, Rear Screens, Side Screens
• Cab: ROPS/FOPS Certified (Can be Open or Enclosed depending on configuration)
• Controls: Pilot-operated hydraulics for precise blade movement
