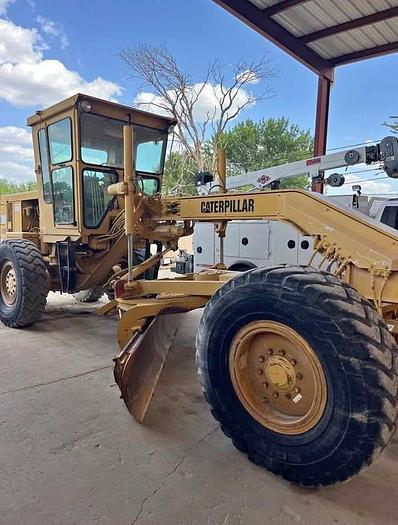

1994 Caterpillar 120G Motor Grader

1994 Caterpillar 120G Motor Grader, built for reliability and performance. Known for its durability and smooth operation, this machine is ready to deliver precision grading on any job site. With recent component overhauls and consistent upkeep, it is in strong working condition and ready to go straight to work. Perfect for construction, road maintenance, or heavy-duty grading projects, this 120G offers excellent value and proven Cat reliability.

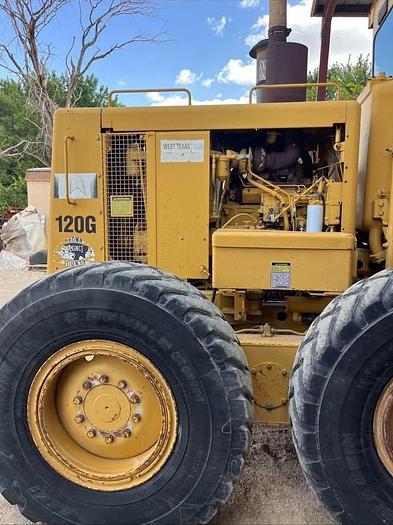

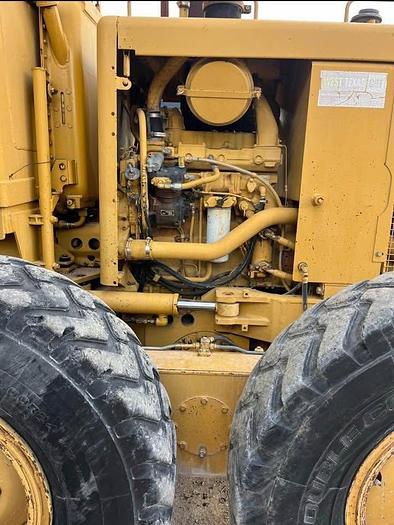

Engine

• Model: Caterpillar 3304T, 4-cylinder turbocharged diesel
• Net Power: 128 hp (95 kW) @ 2,200 rpm
• Displacement: 6.6 L (402 in³)

Operating Weights

• Operating Weight: ~30,000 lbs (13,600 kg)
• Front Axle Load: ~8,500 lbs (3,850 kg)
• Rear Axle Load: ~21,500 lbs (9,750 kg)

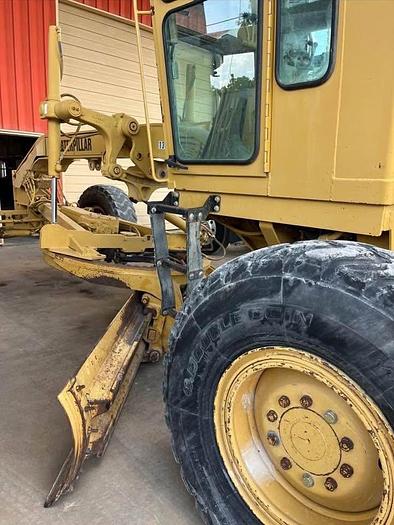

Blade (Moldboard)

• Length: 12 ft (3.66 m)
• Height: 24 in (610 mm)
• Cutting Edge: 6 in x 5/8 in (152 mm x 16 mm)
• Blade Range:
• Lift above ground: 16 in (406 mm)
• Cutting depth: 28 in (711 mm)
• Side shift, right: 20 in (508 mm)
• Side shift, left: 20 in (508 mm)

Dimensions

• Length (overall): 27 ft (8.23 m)
• Width: 8 ft (2.44 m)
• Height to Cab: 10 ft (3.05 m)
• Wheelbase: 20 ft (6.1 m)

Performance

• Maximum Travel Speed (Forward): 24.6 mph (39.6 km/h)
• Maximum Travel Speed (Reverse): 15.9 mph (25.6 km/h)
• Turning Radius (outside front tires): 24.6 ft (7.5 m)

Tires

• Standard: 13.00-24, 12PR

Capacities

• Fuel Tank: 80 gal (303 L)
• Cooling System: 7.5 gal (28 L)
• Hydraulic System: 18 gal (68 L)
